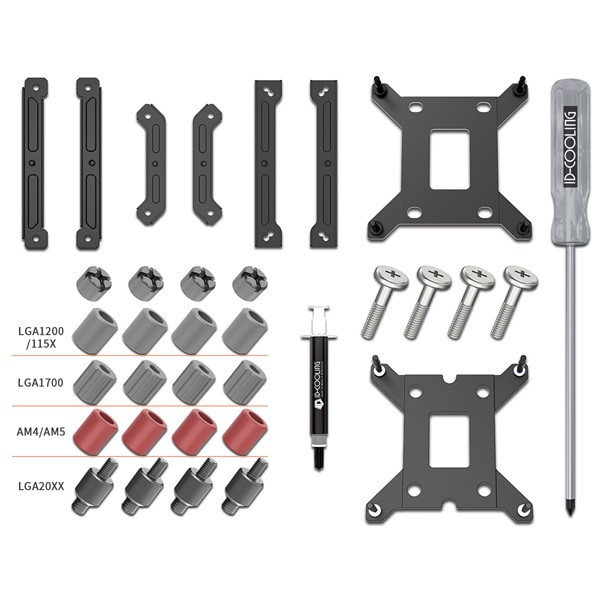

Compatibility
|
Intel LGA2066/2011/1700/1200/1151/1150/1155/1156
|
|
AMD AM5/AM4
|
|
TDP
|
350W
|
|
Radiator Dimension
|
396×120×27mm
|
|
Radiator Material
|
Aluminum
|
|
Tube Material
|
Premium Sleeved Tubing
|
|
Tube Length
|
465mm
|
|

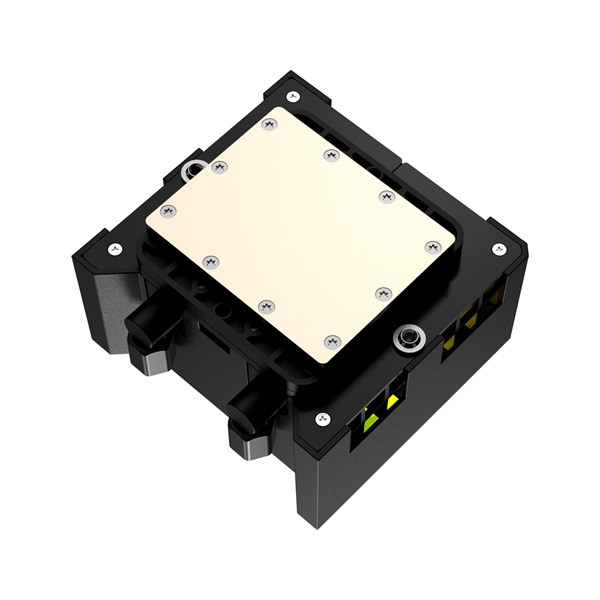

Waterblock Dimension
|
94x90x62mm
|
|
Cold Plate Material
|
Copper
|
|
Pump Current
|
0.32A MAX.
|
|
Pump Speed
|
0~2500RPM
|
|
Pump Bearing
|
Ceramic Bearing
|
|
Pump Life Expectancy
|
50,000 Hrs
|
|
Pump Noise Level
|
≤25dB(A)
|
|
Rated Voltage
|
12VDC
|
|
Operating Voltage
|
10.8~13.2VDC
|
|
Started Voltage
|
7VDC
|
|
Power Input
|
3W
|
|
Connector
|
4Pin PWM
|
we have revised the fans in version 2.
| |

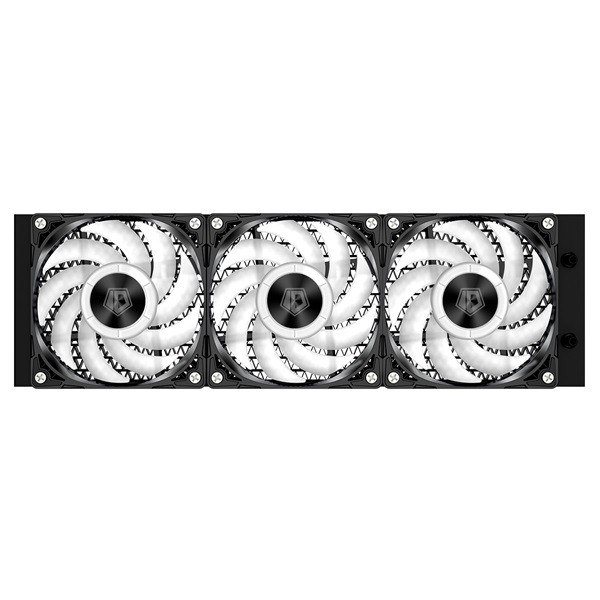

Fan on Radiator (V1)
|
Fan on Radiator (V2)
|
|
Fan Dimension
|
120×120×25mm
|
120×120×25mm
|
|
Fan Speed
|
900~2000±10%RPM
|
900~2400±10%RPM
|
|
Max. Static Pressure
|
2.68mmH2O
|
2.72mmH2O
|
|
Max. Air Flow
|
85.0CFM
|
85.5CFM
|
|
Noise Level
|
32.5dB(A) Max.
|
33.5dB(A) Max.
|
|
Current Input
|
0.25A
|
0.18A
|
|
LED Lighting
|
5V ARGB
|
5V ARGB
|
|
Bearing
|
2 Ball Bearing
|
2 Ball Bearing
|
| |
Fan on Pump
|
|
Fan Dimension
|
120×120×25mm
|
|
Fan Speed
|
800~2800±10%RPM
|
|
Max. Static Pressure
|
1.92mmH2O
|
|
Max. Air Flow
|
23.0CFM
|
|
Noise Level
|
28.0dB(A) Max.
|
|
Current Input
|
0.08A
|
|
LED Lighting
|
5V ARGB
|
|
Bearing
|
Ball Bearing
|
